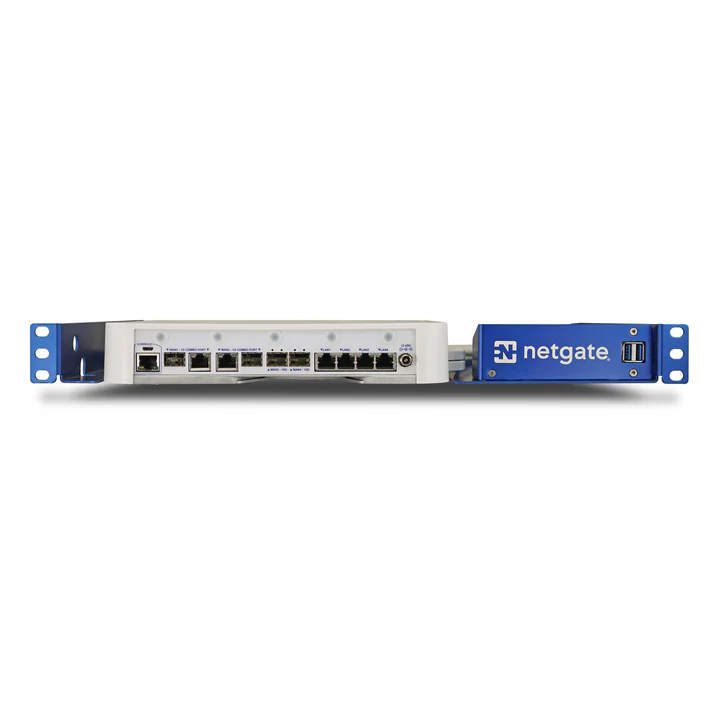

Netgate 8200 Max pfSense® Security Gateway Appliance
- For remote offices, edge deployments, managed service providers, and enterprise networks
- 8-Core Intel Atom C3758R CPU with integrated QuickAssist & AES-NI
- 8 independent and flexible LAN/WAN ports
- 16 GB of memory
Description
TECHNICAL SPECIFICATIONS
| CPU | Intel Atom C3758R with QAT, 8-core @ 2.4 GHz (Denverton family) |
|---|---|
|
Physical Network I/O ports |
(2) 10 Gbps SFP+ WAN ports (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) combo WAN ports (4) 2.5 Gbps RJ-45 “direct” (unswitched) ethernet (LAN) Intel i226 ports |
| Storage | 128 GB NVMe M.2 SSD (B+M Key) |
| Memory | 16 GB DDR4 w/o ECC, single channel (soldered down) |
| Physical Expansion Card Slots | 2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0)
1x Mini-PCIe Slot (Wi-Fi Only) |
| Console Port | 1 x auto-detect console port: “Cisco pinout” RJ45 + micro-USB (micro-USB cable included with each system) |
| USB Ports | 2x USB 3.0 jacks (USB-A female) Located on right side rear / lead out to right side front panel of 1U rack |
| LED | 3x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU |
| Enclosure | 1U Rack – Aluminum, plastic, and steel enclosure.
19 x 10 x 1.75 inches |
| Cooling | Active – integrated quiet chassis fan with onboard control |
| Power | External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.
– AC Inlet: IEC320-C7 (2 PIN) – Power Cord: One US, UK, EU or ANZ power cord included – US Power Cord: NEMA 1-15-P to IEC320-C7 |
| Environmental | 0°C (32°F) to 40°C (104°F) – ambient |
| Certifications | FCC (Class B), IEC / CE, CB, UL, RoHS, RCM, UKCA |
